C200
RONWIN
C200 Slat Chain Conveyor
Slat chain conveyor is a very one of important conveyor in the automatic production line , which is the most important bulk material conveying and handling equipment.
The chain conveyor is widely used for automatic transportation, distribution, and connecting transportation of food, cans, drugs, beverages, cosmetics and washing supplies, paper products, condiments, dairy and tobacco, etc.
Chain plate material: carbon steel, stainless steel, thermoplastic chain. According to your product needs, you can select chain plates of different widths and shapes to complete the requirements of plane transportation, plane turning, lifting, lowering, etc.

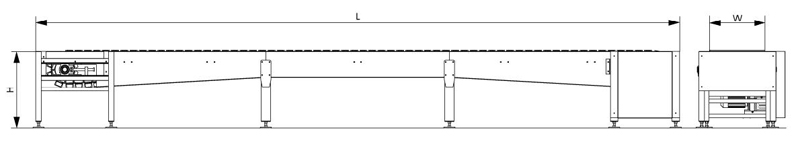

Model no. – width (W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): C200-600-700-5000-10
| Specifications (unit: mm) | |
|---|---|
| length | max. 40m |
| height | 500-1500 |
| width | 500, 600, 700, 800, 900, 1000, 1100 |
| chain pitch | 38.1-100 |
| chain slat material | zinc-plated steel, stainless steel, PVC |
| rack material | steel folded-plate, stainless steel, Aluminium profile |
| support leg material | rectangular tube, U-steel, Aluminium profile |
| conveying speed | max 20m/min, speed is adjustable |
| motor power | 0.75kw, 1.5kw, 2.2kw, 3.0kw |

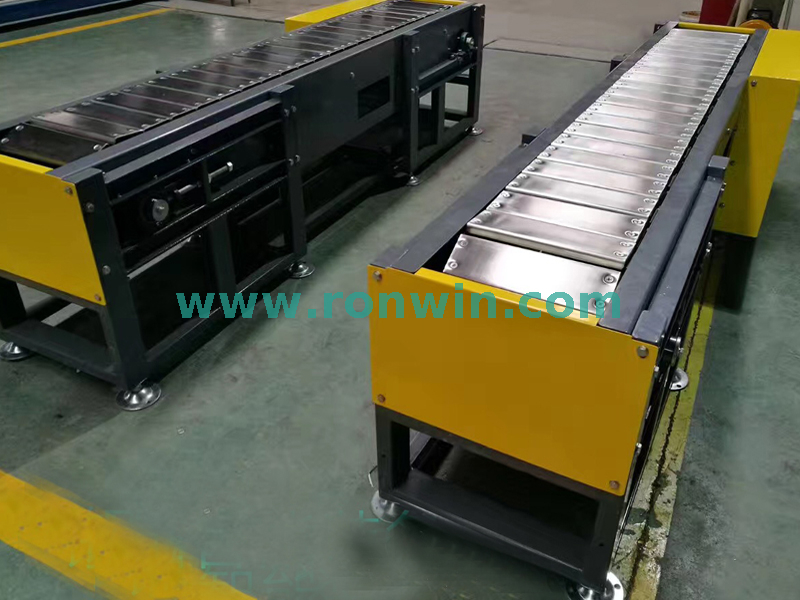

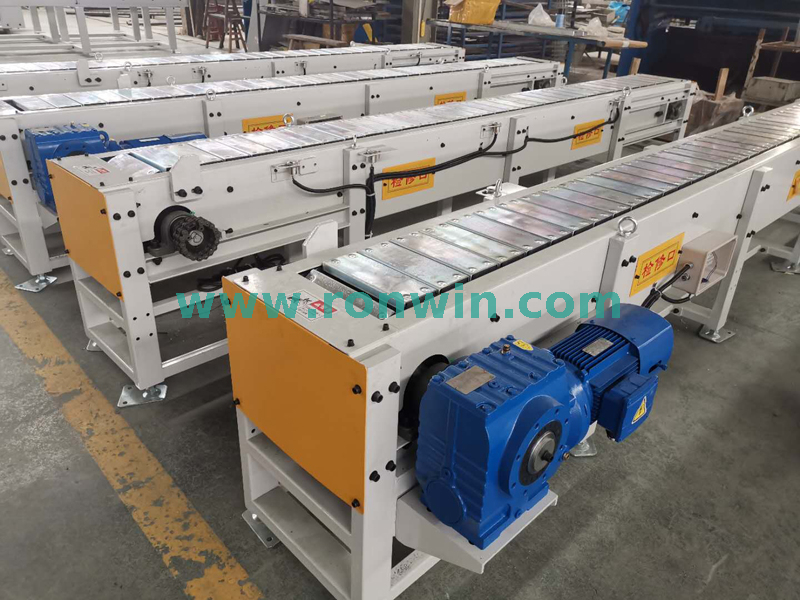

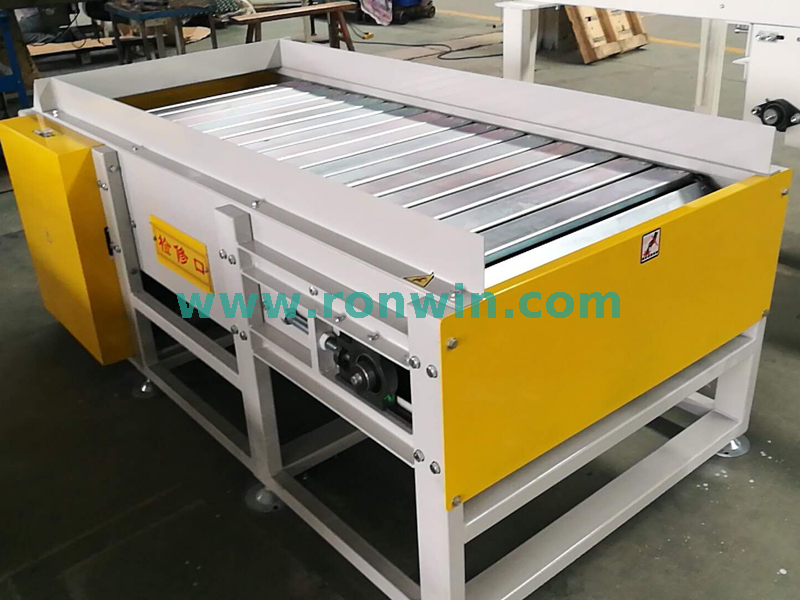

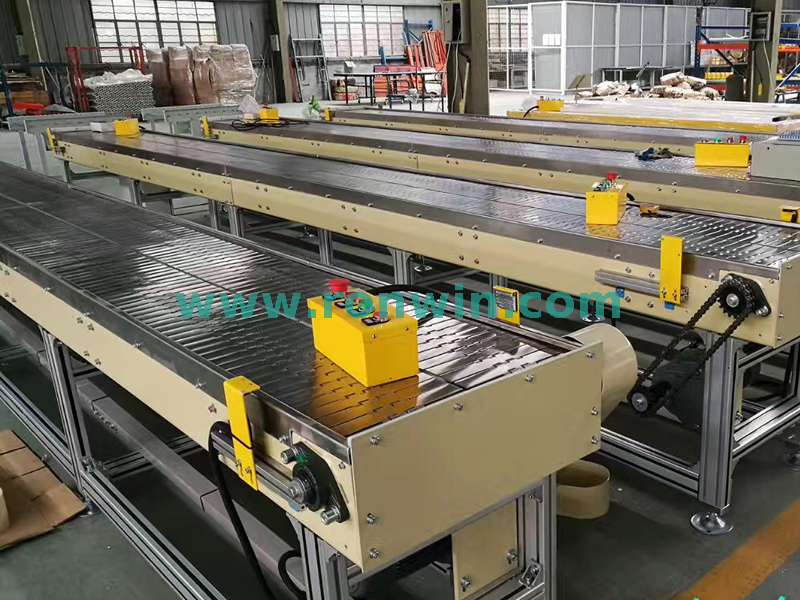

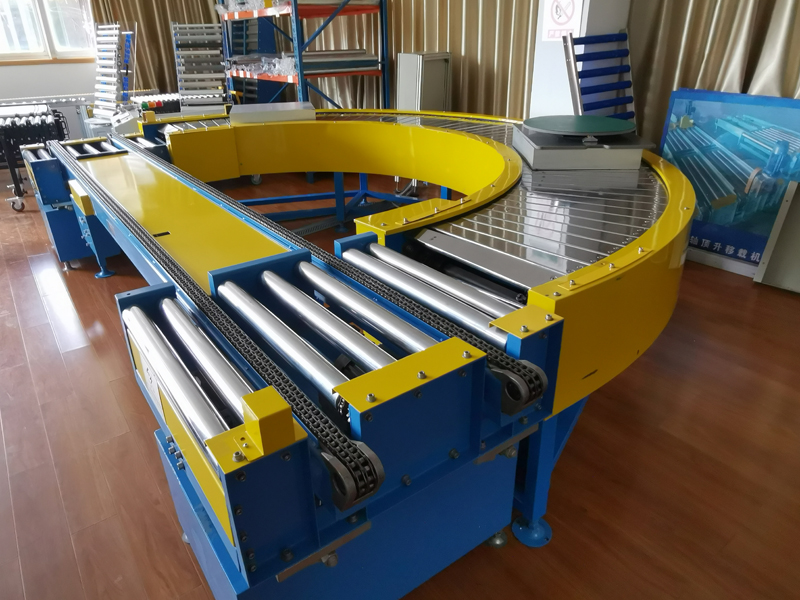

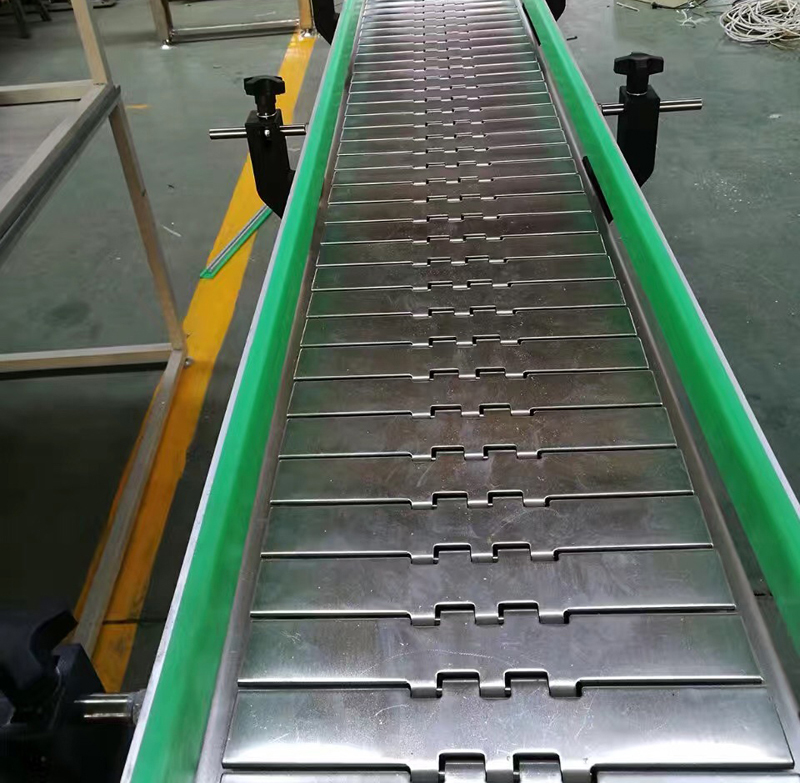

Some product pictures or applications
C200 Slat Chain Conveyor
Slat chain conveyor is a very one of important conveyor in the automatic production line , which is the most important bulk material conveying and handling equipment.
The chain conveyor is widely used for automatic transportation, distribution, and connecting transportation of food, cans, drugs, beverages, cosmetics and washing supplies, paper products, condiments, dairy and tobacco, etc.
Chain plate material: carbon steel, stainless steel, thermoplastic chain. According to your product needs, you can select chain plates of different widths and shapes to complete the requirements of plane transportation, plane turning, lifting, lowering, etc.
Model no. – width (W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): C200-600-700-5000-10
| Specifications (unit: mm) | |
|---|---|
| length | max. 40m |
| height | 500-1500 |
| width | 500, 600, 700, 800, 900, 1000, 1100 |
| chain pitch | 38.1-100 |
| chain slat material | zinc-plated steel, stainless steel, PVC |
| rack material | steel folded-plate, stainless steel, Aluminium profile |
| support leg material | rectangular tube, U-steel, Aluminium profile |
| conveying speed | max 20m/min, speed is adjustable |
| motor power | 0.75kw, 1.5kw, 2.2kw, 3.0kw |
Some product pictures or applications
